Using the channel locks slowly squeeze the cable extensions until they are fully seated.
Honda pioneer 1000 bed extender installation instructions.
Left tube with label middle tube strap 3 center tubes bed extender m c upper center tube left tube with label middle center tube lower center tube.
Bed extender m c kit p n 08l26 t6z 100a.
P n 08l26 t6z 100 left front bracket marked l right front bracket.
Step 2 using the 3 16 allen wrench remove the back half of the cage clamp and set aside.
Retaining bolt from the left side bracket and install the cable extender as shown.
First the factory rear suspension.
Slide three center tubes into the left tube use the coated area as a guide for depth of insertion.
Durable gloss black powder coat adds a stylish finish.
Quick easy to install.
Bed extender 6 mm flange bolt short band band wire.
Finally a product that addresses two issues related to the honda talon.
2021 pioneer 1000 5 overview honda what s the right number of people for a job.
Durable gloss black powder coat adds a stylish finish.
Accessory user s information manual.
2019 ridgeline feb 2018.
Left front bracket marked l right front bracket.

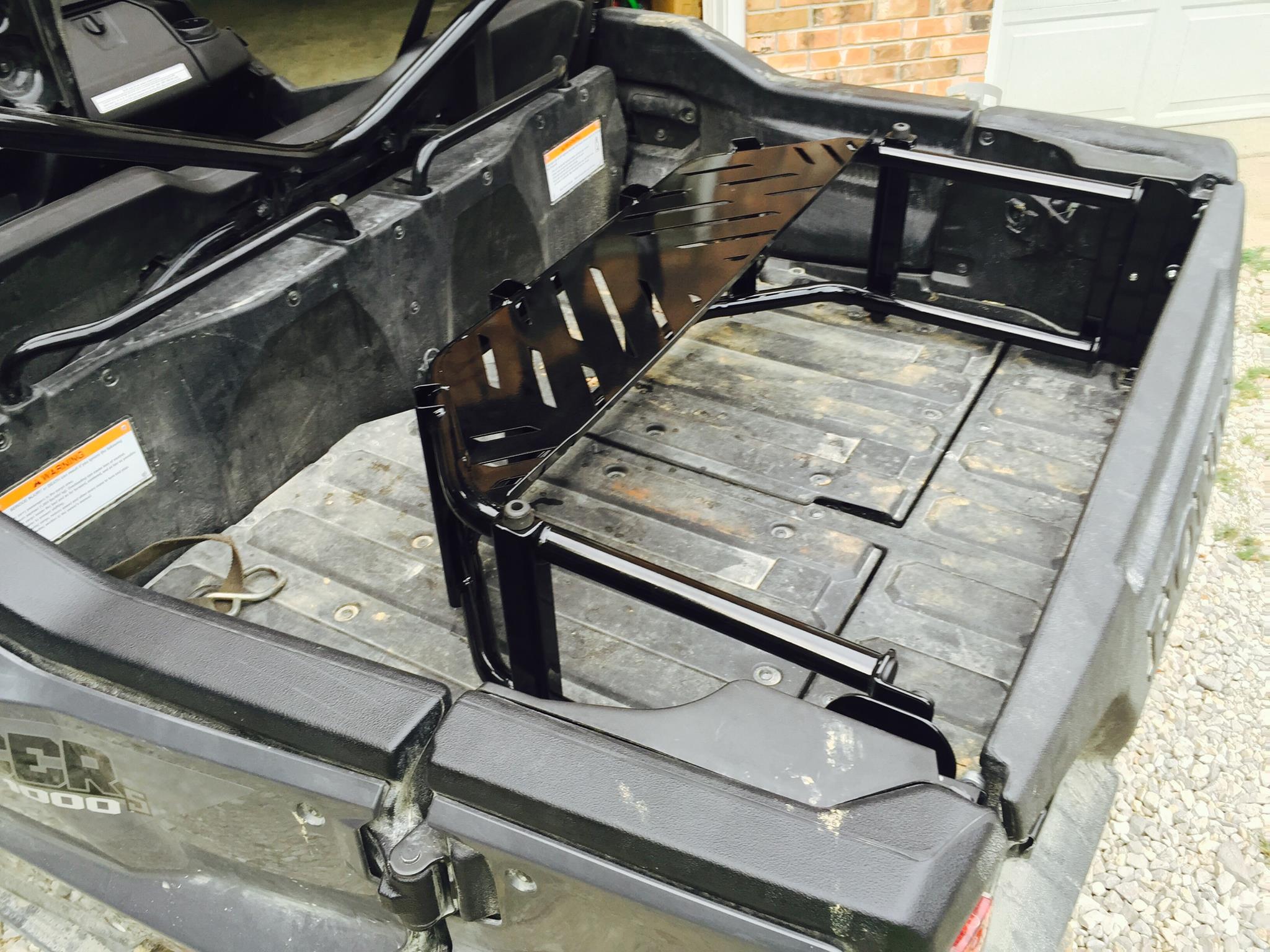

Flips forward into the bed allowing tailgate to close when not in use.
Install the strap to the middle tube of the left tube.
Install the rubber bumpers thick as shown.
All about 99 complete with the bed extender install but i have two collared spacers that are about 1 in length and 5 in diameter my best guess suggests that they would be installed on the vertical bed pillar by using a step drill then insert and put a bolt through to secure lower bracket end that the extender attaches to the dealership is closed on mondays so i can t get the instructions and they are not upload to this forum yet.
Aii08121 20 1802 08l26 t6z 1000 90 1 of 8 version 1 bed extender.
Install the caps as shown.
Install the bed extender on the left and right bed extender brackets as shown.
Flips forward into the bed allowing tailgate to close when not in use.
You need to tailor your crew to your needs and that s exactly what honda s pioneer 1000 5 family of side by sides does so well.
Installation is very easy and.
Strong durable steel bed extender for added bed space.
With room for five occupants all three models feature the same core values.
Bed extender bed extender rubber bumper thick cap cap bed extender left bed extender bracket 17.
The fully opening tailgate allows easy access.
The added weight of this extender helps to smooth out the bucking that talon owners know all too well.
Repeat for the right side bracket.
Tighten the loosely installed parts securely.
Second the talon is a tall machine and getting coolers and other items over a fixed gate is difficult.
1000 bed extender instructions.
